Facades / roof glazing

SAPA 5050 SG

SG - System Glazing

Curtain walling with mini exterior glass holders

Characteristics

The 5050 SG System Glazing facade system consists of 50 mm wide insulated aluminium profiles. The external glass holders are only 32 mm wide, while the internal framework profiles are 50 mm wide. The external glass holders are best installed with countersunk screws, which can be hidden with covers. Rebate for double and tripple glazing units with standard sealing.

The profiles are designed so as to ensure stability under the dimensioning loads. The system can be easily complemented with opening units. The U value of a facade must be reported for the entire facade.

Documentation
5050 SG_EN_ProdBrochure2021.pdf

Product benefits

DIVERSITY OF APPLICATIONS

  • Well-insulated profiles.
  • Framework profiles Rectangular, profile depth 60-180 mm.
  • Opening windows with hidden sash.
  • Doors Hinge type and sliding doors can be easily connected.

HIGH PERFORMANCE

  • Classified According to applicable EN standards.

More information

Specifications & EPD

U values for infill panels

Only Vaku Paneel can be used as infill panels in the 5050 SG facade system. The middle point U values for infill panels are presented below. The calculations are based on the requirements and general guidelines contained in the Swedish construction regulations BBR 2008, chapter 9.

Surface layer: Glass, aluminium sheet and steel sheet are the standard materials
Colours: For glass and sheet metal according to RAL, NCS or DB (Akso Nobel)
Sizes: Min. 350x350 mm, Max. 2400x4500 mm
Noise reduction: Rw 42 dB for a glass and 3 mm sheet metal combination
Fire: Vaku Paneel is classified as non-flammable
U value: From 0.29 to 0,29- 0,16 W/m2 K

Glazing

Unprotected glazed surfaces, which are located so that persons can reach them and shall be designed to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.

Glass thickness 26-41 mm (double glazing units) or 46-51 mm (tripple glazing units).

The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.

Opening units

The facade system can be easily complemented with 4074 outward opening windows and 2086 doors.

The 4074 window system is suitable for integrating in the facade system. The outward opening windows can be provided with fittings for either horizontal or vertical projection function.

The 2086 door system includes inward and outward opening single or double-leaf doors.

4074 Facade Windows

- Profile depth 84 mm
- Insulated aluminium profiles
- Rebate for double glazing units


2086 SX Doors

- Profile depth 86 mm
- Insulated aluminium profiles
- Inward or outward opening
- Single- or double-leaf doors
- Rebate for double and triple glazing units

U values for glass facades

Formula for calculating the total U value of a facade, taking into account the glazing unit, the share of profiles and an edge zone effect linear factor.

Ucw = ( Ag * Ug + Af * Uf + Ig * ψg )  /  ( Ag + Af )

Elevations And Details

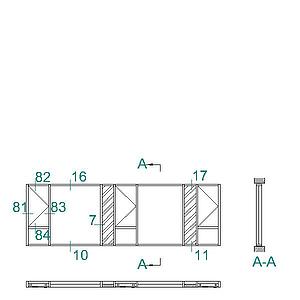

A5050-1014 10111617781828384
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1015 110163
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1002 10141721222331323334
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1012 1111316234
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1013 110163
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1001 110111213131314141622122345681828384
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1010 110131314141623456
Save this elevation as: dwg / dxf
Click on number to view the details
A5050-1011 1101212121635
Save this elevation as: dwg / dxf
Click on number to view the details

Projects using facades / roof glazing SAPA 5050 SG

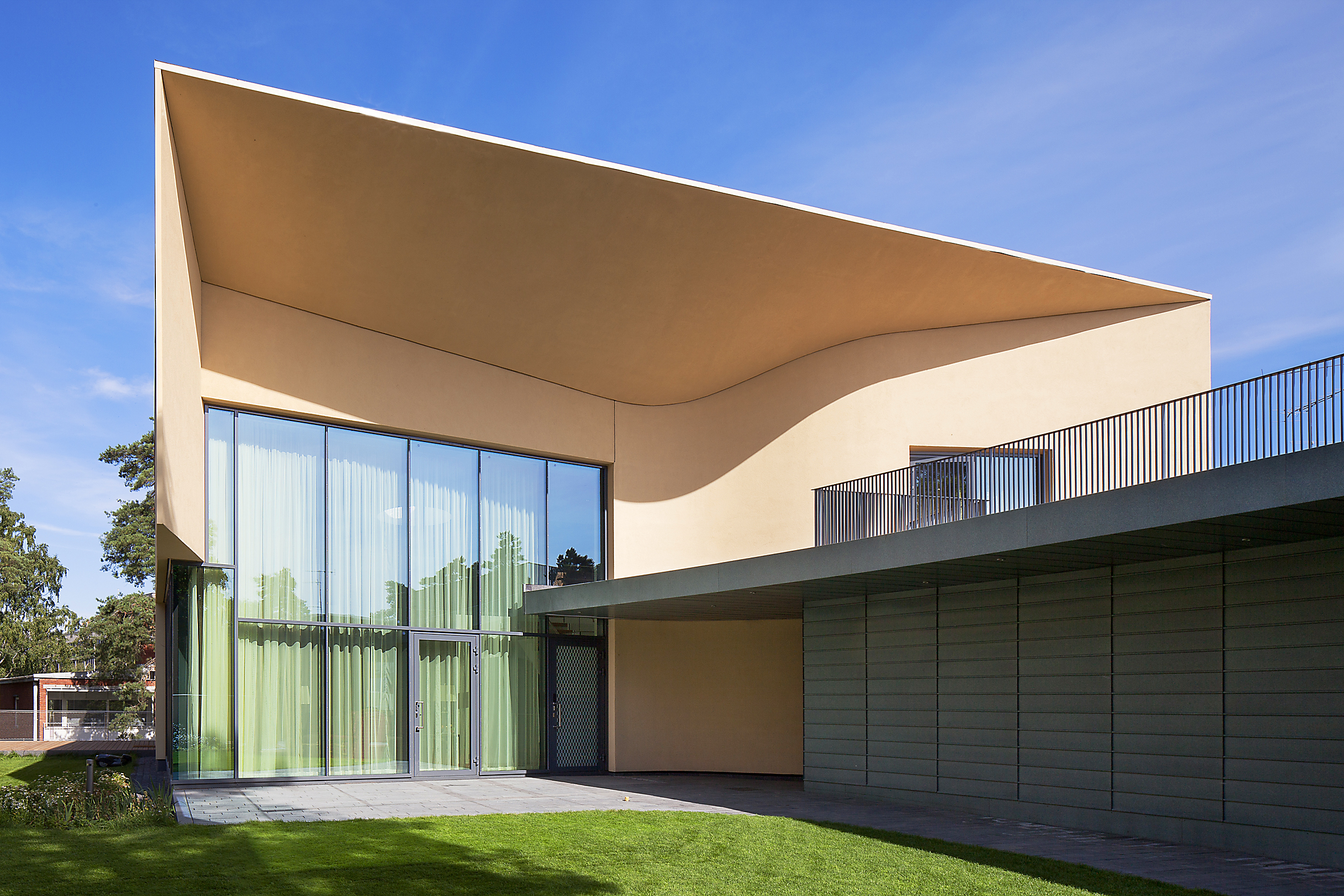

Villa Jaune, Helsinki

Finland

Object and location: Villa Jaune, Helsinki
Building year: 2013
Architect: Professor Jyrki Tasa, Arkkitehdit NRT Oy
Fabricator: Imera Oy

Facades: Sapa 5050 SG
Glazing bead: vertically 42651, horizontally 42227
Doors: Sapa 2074
Windows: Sapa 1074 SX
Glazed Roof: Sapa 5050
Colour: Powder coating RAL 7011

Photographer: Jussi Tiainen

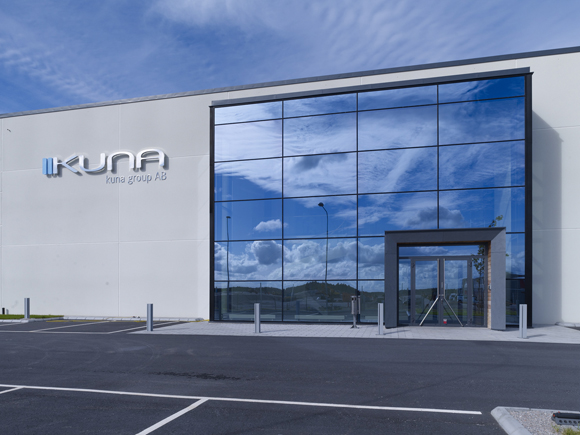

Kuna Group, Rosersberg

Sweden

Facility: Kuna Group
Place: Rosersberg, Sweden
Construction year: 2010-2011
Architect: Magdalena Kaczynska and Killenkrysset AB
Fabricator: Rockpart

Facades: Sapa 5050 SG
Window wall section: Sapa 4150
Doors: Sapa 2074 and 2050
Surface finish: Powder coating RAL 7015 and RAL 9010 and black anodising Hx-50

Photography: Hans Bonnevier

Cathedral Forum, Lund

Sweden

Facility and town: Cathedral in Lund
Construction year: 2010-2011
Fabricator: Preconal Fasad AB
Proprietor: Cathedral Council in Lund
Architect: Carmen Izquierdo Arkitektkontor AB

Facades: Sapa 4150 SSG, 5050 SG, 4150, Opening windows Sapa 4074 in facade
Windows: Sapa 1074. Outward opening roof lights
Doors: Sapa 2074
Surface finish: Black on the outside and white on the inside

Photography: Åke E:son Lindman

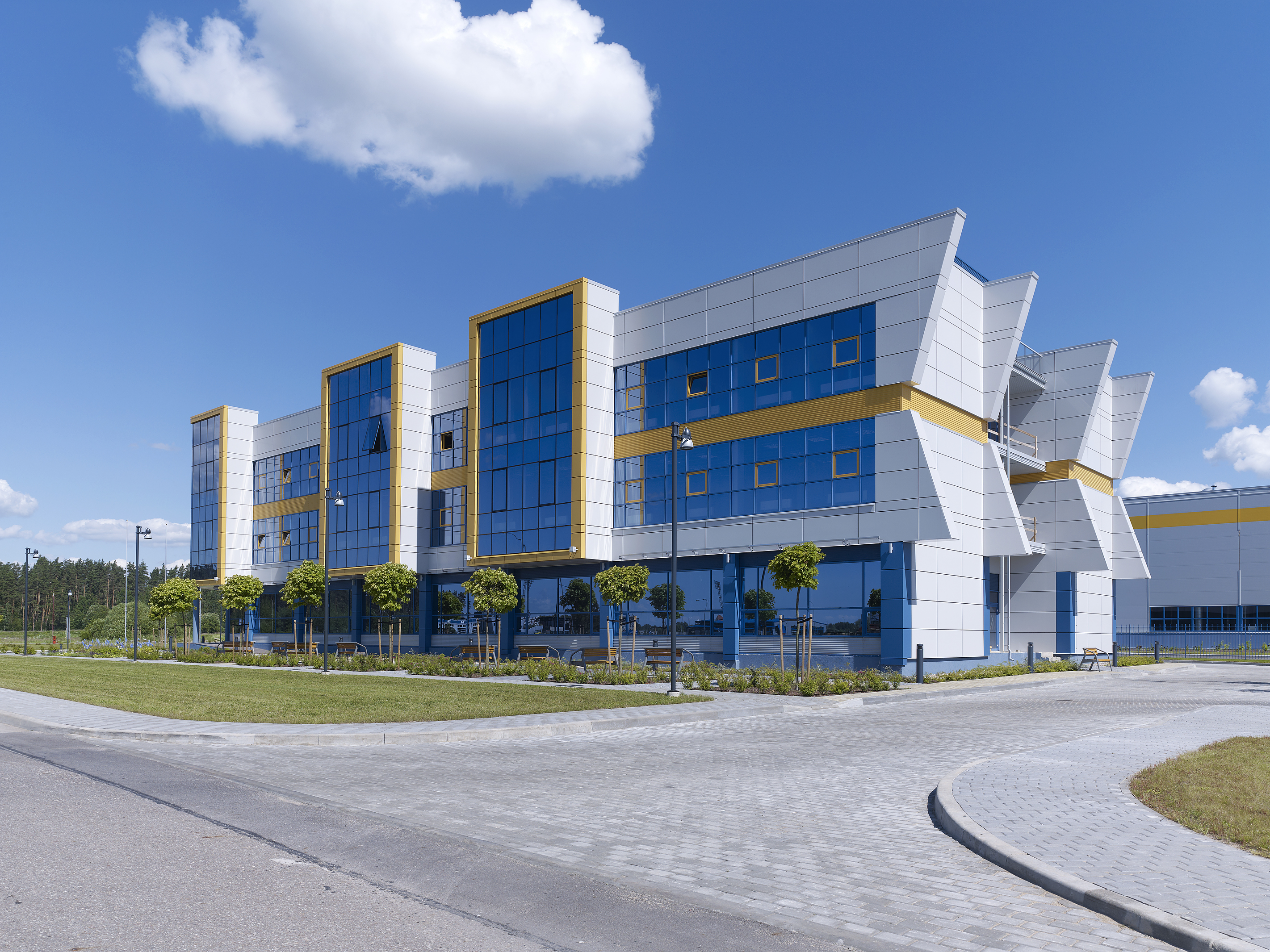

AMOPLANT, Jelgava

Latvia

Facility: AMOPLANT
Construction year: 2008-2009
Proprietor: SIA EKA
Fabricator: SIA Pontium
: Māris Jostiņš, SIA RUP

Facades: Sapa 4150, 5050SG
Windows: Sapa 1074, 4074
Doors: Sapa 2074, 2074 folding
Surface finish: mainly RAL 5007, 1074 windows – RAL 1017

Photography: Hans Bonnevier
