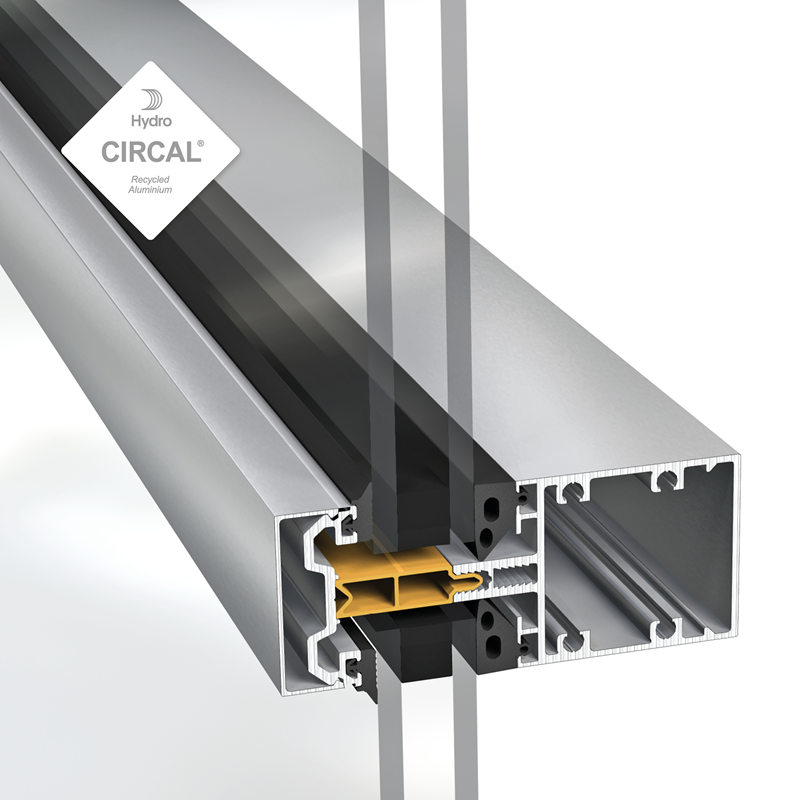

The 4150 facade system consists of 50 mm wide insulated aluminium profiles. The design of the inside gasket and the thermal break optimises the insulation of the profiles.
The profiles are available in a number of different depths. They are designed so as to ensure stability under the dimensioning loads and are joined together with hidden joints. The system can be easily complemented with opening units. The U value of a facade must be calculated for the entire facade.
Unprotected glazed surfaces that can be reached by persons shall be designed to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.
Glass thickness 23-48 mm

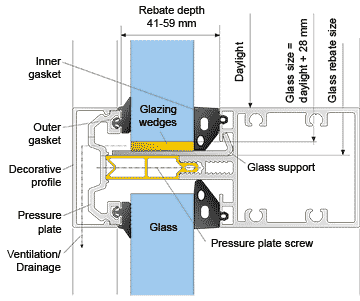

The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.
The window frames are specially adapted to the glass rebate of the facade system for simple installation. The windows in the 1086 window system are available as tilt and turn, bottom- hung, top-hung and side-hung, inward opening units.
The 2086 door system includes inward and outward opening single or double leaf doors with frame profiles that are specially adapted to the glass rebate of the facade system for simple installation.
1086 windows, inward opening
- Profile depth 86 mm
- Insulated aluminium profiles
- Side, bottom or top-hung
- Tilt and turn
- Rebate for double and triple glazing units
1086 windows, outward opening
- Profile depth 86 mm
- Insulated aluminium profiles
- Side, bottom or top-hung
- Rebate for double and triple glazing unit
1086 block windows, inward opening
- Profile depth 86 mm
- Insulated aluminium profiles
- Tilt and turn
- Rebate for double glazing units
- Fals för 2-glas
4074 facade windows, outward opening
- Profile depth 88 mm
- Insulated aluminium profiles
- Top hung projection
- Bottom hung projection
- Rebate for double glazing units
2086 SX doors
- Profile depth 86 mm
- Insulated aluminium profiles
- Inward or outward opening
- Single or double leaf doors
- Rebate for double and triple glazing units
Formula for calculating the total U value of a facade, taking into account the glazing unit, the share of profiles and edge zone, affect the linear factor.
Ufasad = ( Ag * Ug + Af * Uf + Ig * ψg ) / ( Ag + Af )
For more information please contact our Architect Support
Opinions differ among designers on how the outside joints of a glass facade should be shaped. We have two different decorative profile systems: Add and Expressive.
Add, offers a design concept with its visible fastening elements and characteristic groove. The add cap is also able to support solar shading elements, lightning conductors, down pipes, rain gutters, signboards and lighting.
Expressive, gives the designer more freedom in the play of light and shadow on the facade. It is also possible to design one's own decorative profiles if needed.
Add, decorative profiles
Add 42693 basic decorative cap with mitred connection.
Add 42693 basic decorative cap complemented with coloured infill cap.
Add 42693 basic decorative cap with large screw mounting.
Add, support system
Add 42693 basic decorative cap with downpipes
Add 42693 basic decorative cap with lightning conductor cable
Add 42693 basic decorative cape with connection for solar shading elements
Expressive, decorative profiles
Expressive 42695 flanged cap in horizontal arrangement combined with 42227cap in vertical arrangement
Expressive 68827 decorative cap in horizontal arrangement combined with 68823 wing cap in vertical arrangement
Expressive 42695 flanged cap in horizontal and vertical arrangement
Expressive 68819 T-cap in horizontal and vertical arrangement
Expressive 68827 U-cap in horizontal and vertical arrangement
Expressive 42813 pyramid cap in horizontal arrangement combined with 42811 cape in vertical arrangement
