High-insulated French-window with the possibility to integrate side or top lights. This French-window belongs to the 1086-family with the same basic characteristics and performance as the corresponding standard windows.
SAPA 1086 French-window can be easily combined with our façade systems 4150, 5050 SG and 3086.
This product is made of Hydro CIRCAL® recycled aluminum. Read more here
This product is made of Hydro REDUXA® - Aluminum produced from renewable energy. Read more here
Closed

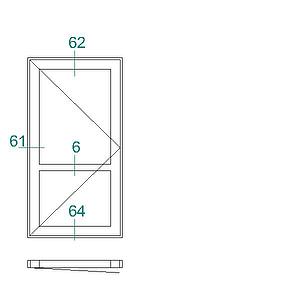

Open, side-hun
Fix closing fittings
Sapa standard handle
Sapa standard lockable handle
Fix window brake
For the entire window structure to meet the energy saving requirements and ensure good comfort it is necessary to install the window in the warm part of the wall. This means that it should be installed as deep into the wall as possible, which has a number of advantages.
It creates good conditions for appropriate fixing and a well functioning joint. The risk of condensation is reduced due to a higher surface temperature. The joint between the frame profile and the wall shall be made with two step sealing. This means that it should consist of an outer rain barrier with an underlying air channel, a mineral wool insulation layer and an inner diffusion sealing joint.
Connections, see Elevations and details.
Unprotected glazed surfaces that can be reached by persons shall be designed so as to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.
Functional dimensions
Glass thickness 20-64 mm
The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.
Certain parts of the elements can or must be filled with infill panels. It is important to consider the backing and the surface layer of the panels.
The example shows infill panel F2
Infill panel F1
1,5 mm aluminium sheet
60 mm insulation
1,5 mm aluminium sheet
U-value at middle point down to 0,54 W/m²K.
For areas with little mechanical impact, such as high-level infill panels.
Infill panel F2
1,5 mm aluminium sheet
4,8 mm board
50 mm insulation
4,8 mm board
1,5 mm aluminium sheet
U-value at middle point down to 0,61 W/m²K.
For areas with moderate mechanical impact, such as low-level infill panels.
Infill panel F3
1,5 mm aluminium sheet
50 mm insulation
10 mm chip board
1,5 mm aluminium sheet
U-value at middle point down to 0,61 W/m²K.
For areas with high mechanical impact from outside.
Windows must be fixed to a stable and suitable wall structure. The choice of fixing method depends on the wall type. The number and location of fixing points depends on the size of the window.
Exemple:
Fixing of frame with
twist anchor
Fixing of frame with
adjustable frame bushing
Fixing of frame with
bolt and welded plate
