SAPA 4550 Wing solar shading complements our 4150 facade system in a simple and elegant manner. As the profile meets the light and the wind in a soft manner, the form takes your thoughts to aerodynamics. The Wing, installed in an unbroken line, gives a minimum interruption of sections.
There are many possibilities to design the solar protection. We offer solutions for visually unbroken solar protection and for a modular area division into modular sections. The surface finish can additionally emphasise the form and expression of the profile. With the help of our decorative profiles, the appearance of the bearing profiles can be emphasised in order to harmonize with the architecture of the building.
Alternative 1 and 3: The unattached louvers are installed directly on the bearing profile, which can be arranged vertically or horizontally. The vertical line can be additionally
emphasised by installing decorative profiles from the Expressive family of the 4150 facade system.
Alternative 2: The unattached louvers are installed directly on the vertical bearing profile in a so-called unbroken line. This creates a distinct direction.
Alternative 4: The louvers are screwed to the end/side profiles, which makes it possible to pre-fabricate sections. The sections are installed vertically on aluminium bearing profiles. This alternative gives an austere and homogenous appearance and a clear visual profile.
Alternative 1: Vertical
Alternative 2: Vertical
Alternative 3: Horizontal
Alternative 4: Vertical
SAPA 4550 Wing solar shading offers a great freedom of choice with a possibility to add new architectural values and strengthen the existing ones. We can adapt the solutions to individual projects when necessary. Detail solutions and a well-planned completion are important. It is the final result that determines which solution is the best one. All buildings are unique through their location, usage and architecture
Vertical installation
Self-bearing support
Unbroken louvre lines
Vertical installation
Against Add profile
Unbroken louvre lines
Vertical installation
Self-bearing support
Broken louvre lines
Vertical installation
Hanging support
Broken louvre lines
Vertical installation
Ground foundation
Broken louvre lines

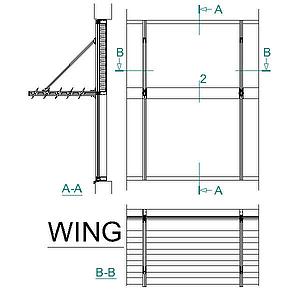

Horizontal installation
Support with tierod
Broken louvre lines
