Sliding Doors

TIGAL

Pull and slide

The hybrid pull-slide system

Characteristics
Concealed opening
Concealed drainage
Concealed hardware
Innovation
Comfort and well-being
Confort
Système hybride
Aluminium

 TIGAL is a hybrid system that combines the advantages of a sliding door with the tightness performance of the window.

This product is ideal for meeting the challenges of climate change as it has excellent thermal insulation and water tightness compared to traditional sliding doors.

With a patented sealing system and locking points around the entire door leaf, exceptional waterproofness is guaranteed - up to four times better than a traditional sliding door.

TIGAL has the possibility of micro-ventilation when the handle is in neutral position.

Narrow lines and hidden fittings provide a balanced aesthetic along with easy-to-maneuver and quiet operation for easy use. Also the option to build in the window frame for a minimalist look.

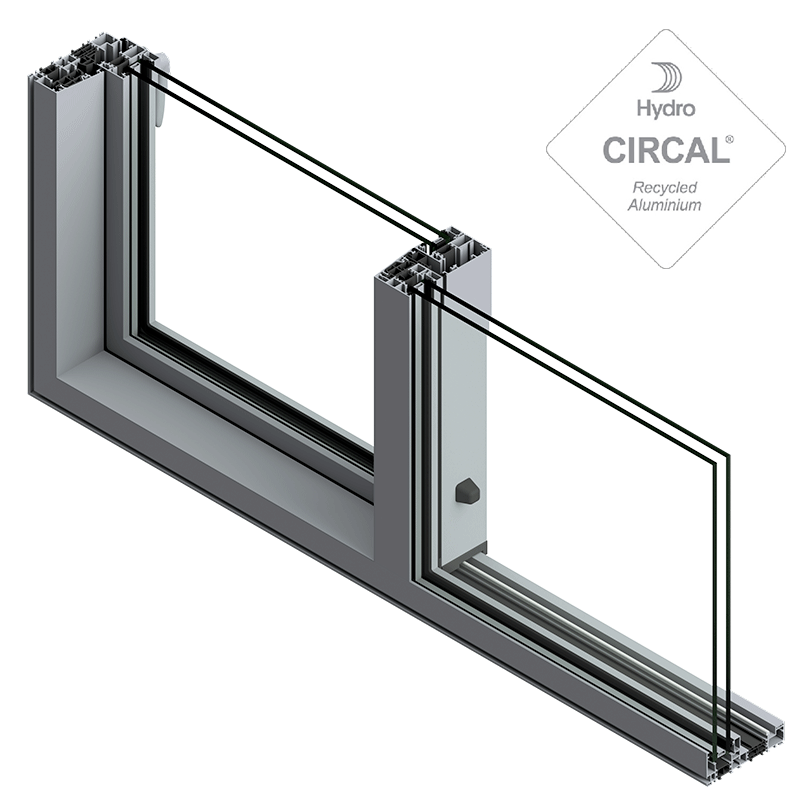

This product is made of Hydro CIRCAL® recycled aluminum. Read more here

Documentation
Tigal_Sapa_Datasheet_2023 BL.pdf
PB_Sapa_Tigal_BL.pdf
Sapa TIGAL PREMIUM Sliding door 1 leaf + 1 fixed, 3-glass, coated EPD summarized ENG.pdf
Sapa TIGAL PREMIUM Sliding door 2 leaves + 1 fixed, 3-glass, coated EPD summarized ENG.pdf

Product benefits

LARGE SIZES

  • Dimensions up to (WxH) 2000x2700 mm per vent.
  • Frame max. width 6500 mm
  • Minimum dimensions (W
  • Max weight 300 kg per vent

DIVERSITY OF APPLICATIONS

  • Micro ventilation in neutral position
  • Built-in threshold only 15 mm high
  • Parallel displacement of 6 mm for the door leaf

DIVERSITY OF FORMS

  • Sleek design
  • Micro-ventilation
  • Concealed hardware
  • In open position: all locking systems are black or
  • covered with black ABS covers for a premium finish.
  • Concealed drainage on all applications.

HIGH PERFORMANCE

  • Thermal: Uw up to 0.85 W/m²K (Ug= 0.5 W/m²K ),
  • 1 leaf + fixed, H x W = 2180 x 2300 mm.
  • Air permeability: up to Class A4
  • Micro-ventilation: up to Class A1
  • Water-tightness: up to E1200 (1200Pa).
  • Wind pressure resistance: up to Class C5.
  • Burglar resistance features: Level RC2 and PAS24

More information

Specifications & EPD

Drawing Texts

The texts are intended to help the specificators to specify which systems, fittings, glazing units, surface treatment alternatives and functions are required. They are later used by the licensed fabricators during the production of the finished products.


Download the text as .dwg
Download the text as .pdf

Threshold options

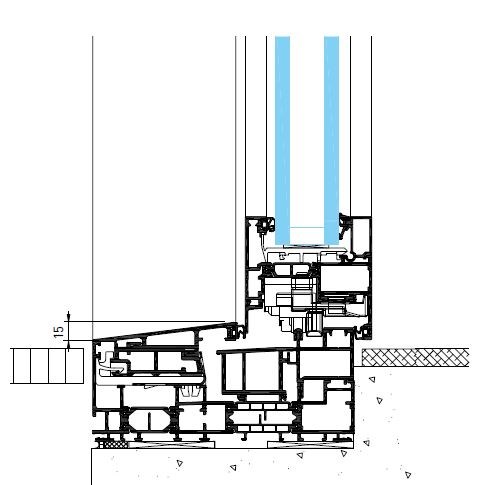

Low threshold, adapted for higher accessibility, height 15 mm. Identical overall performance in the standard version as in the low-threshold version for increased availability

Submerged threshold

Applications

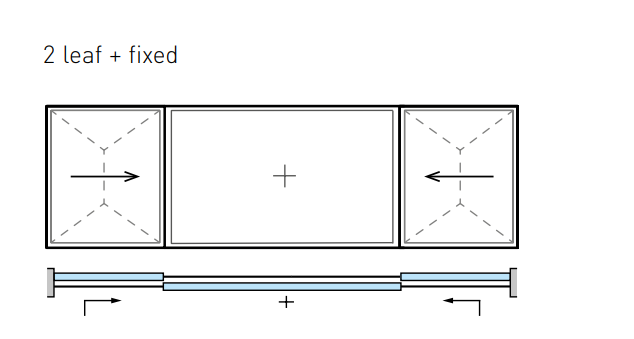

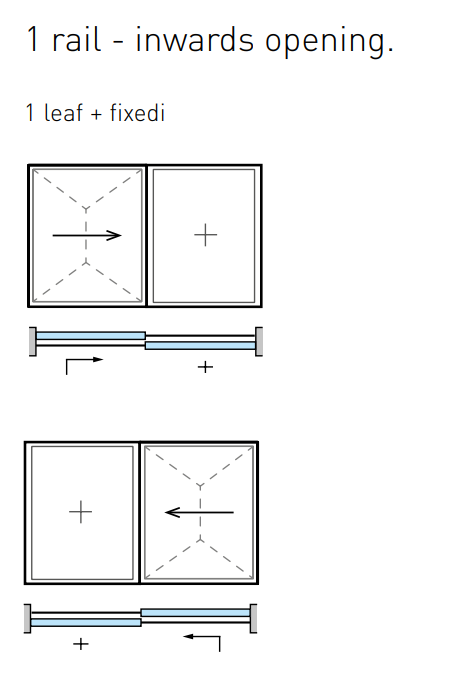

tigal en1.PNGtigal en2.PNG

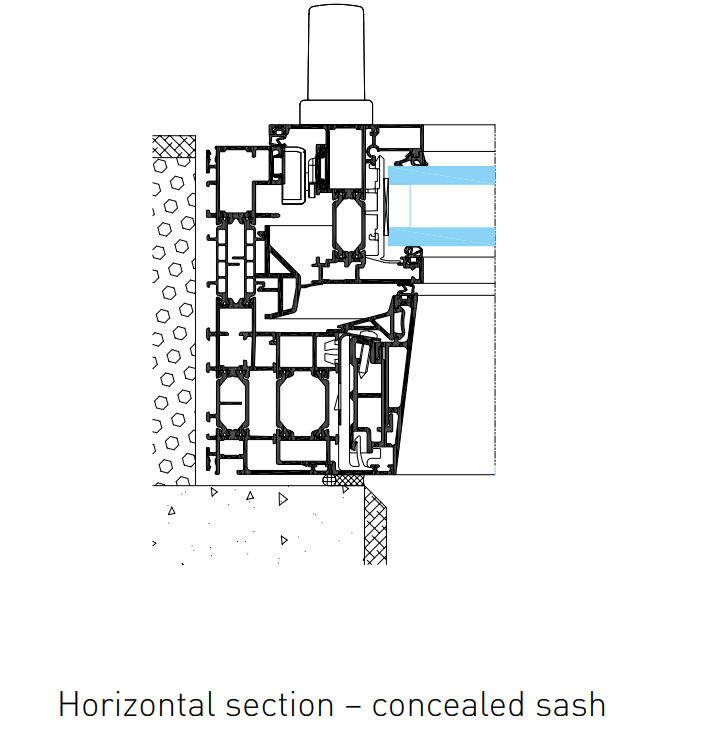

tigal en3.PNG

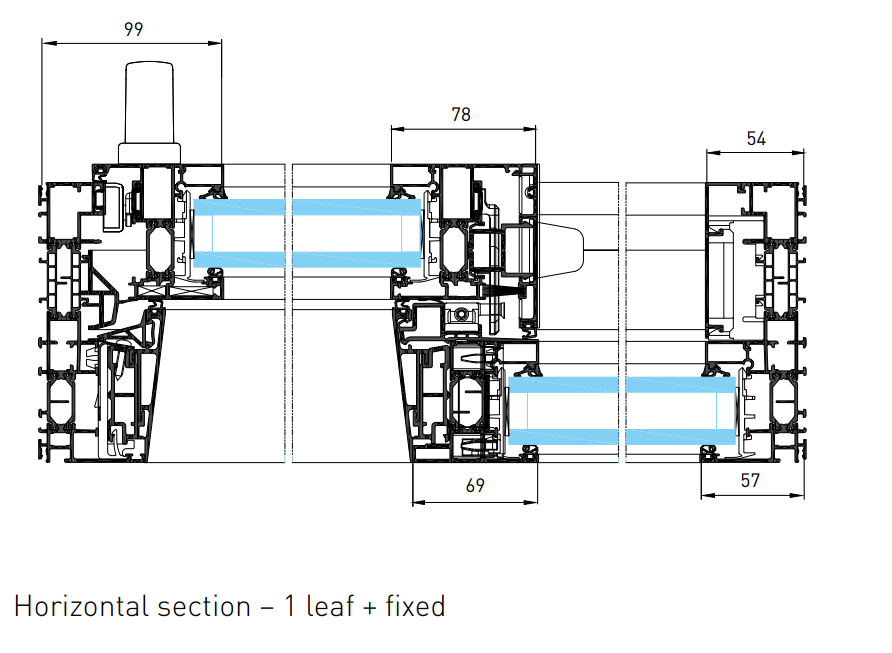

tigal en4.PNG

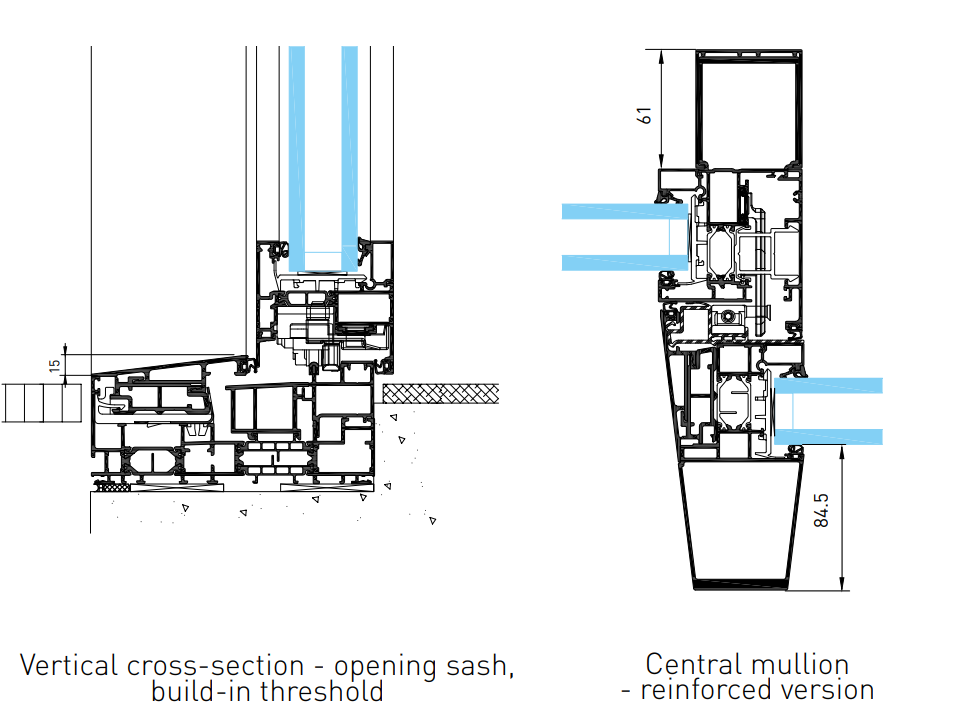

tigal en5.PNG

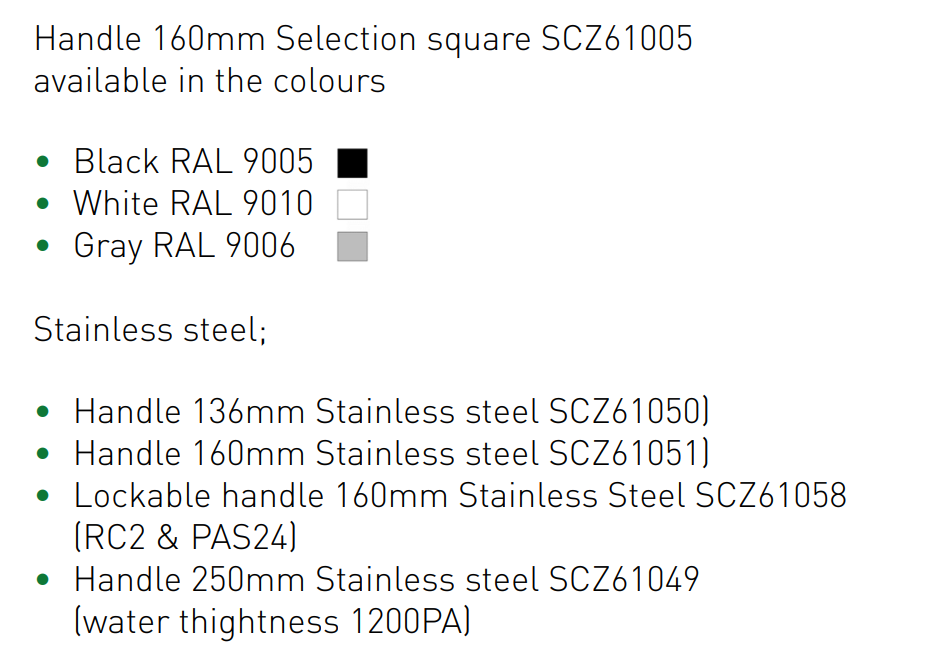

Handles for Tigal are available in two different designs.

tigal en6.PNG

BIM
