Sliding Doors

SAPA 2160

Lift-and-Slide Door XS

High insulated lift-and-slide door

Characteristics

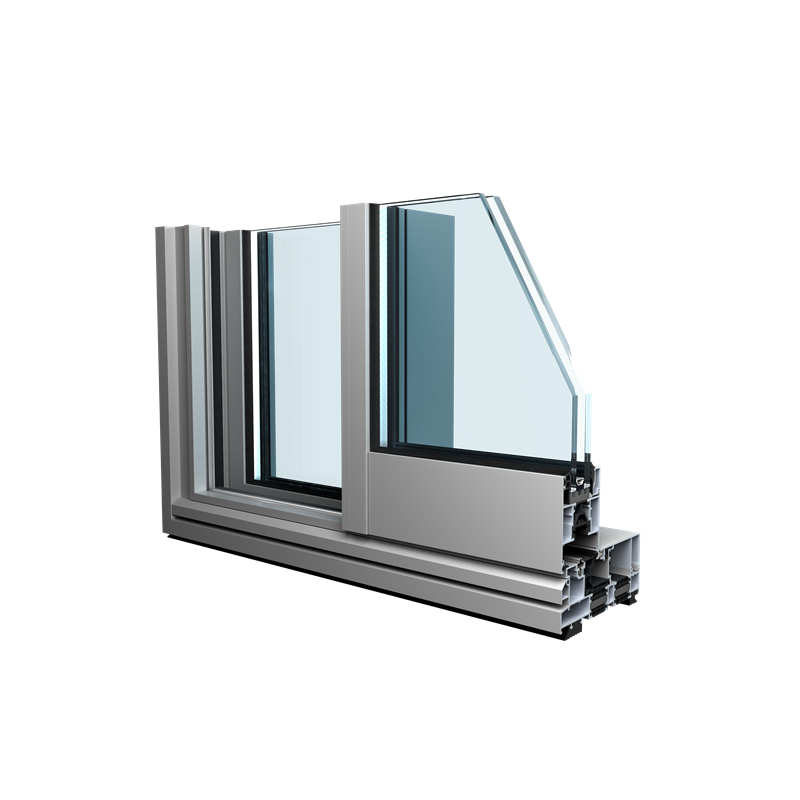

Lift-and-Slide Door 2160S XS is made of insulated aluminum profiles with a frame depth of 160 mm and a door leaf depth of 70 mm. The insulation consists of 50 mm wide glass fibre reinforced polyamide strips. The lift-and-slide door has lift-slide fittings for user-friendly handling. The door leaf is easily slid aside and seals all around as the door leaf is lowered a few millimeters in closed position.

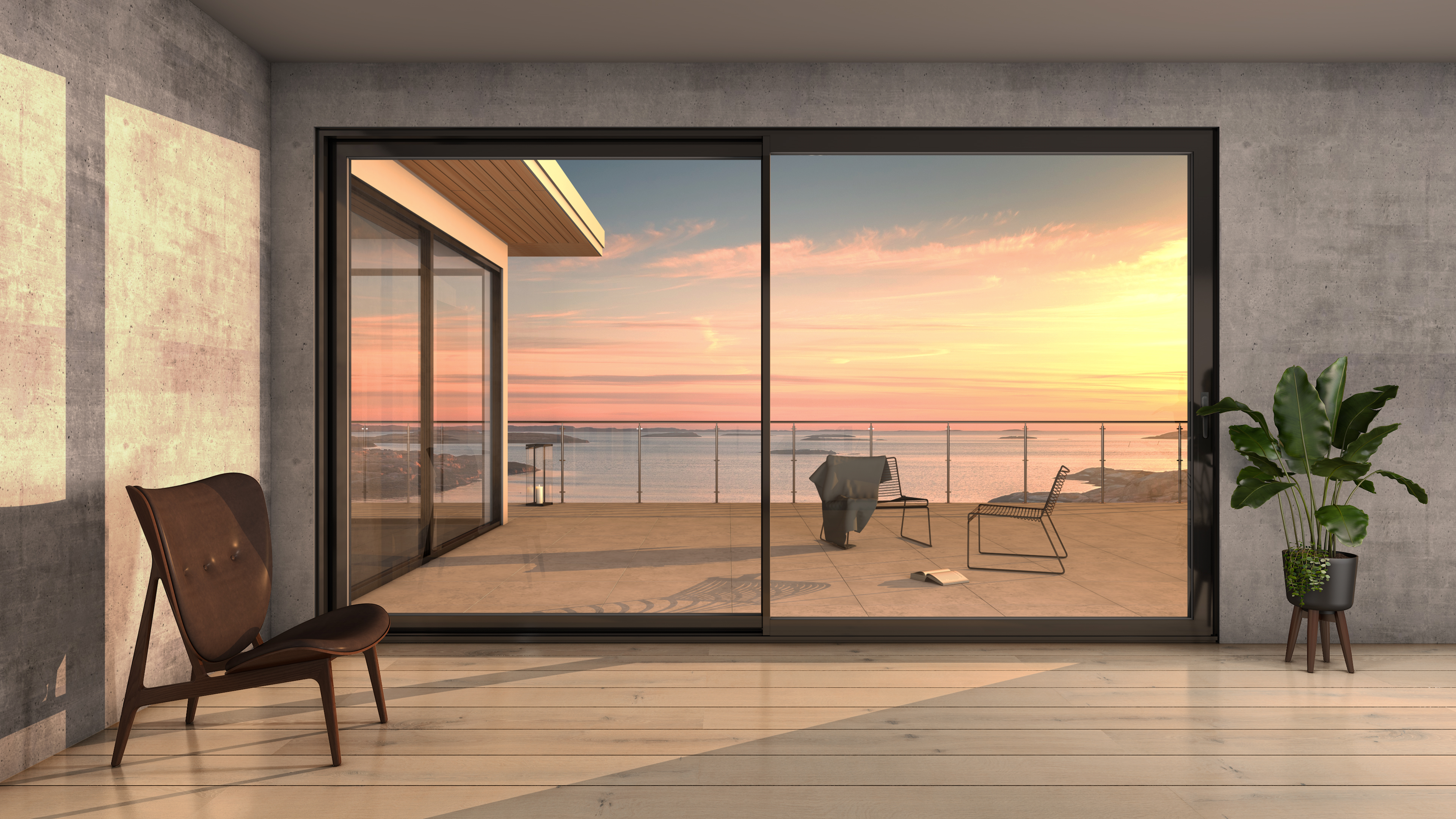

SAPA 2160S XS offers a bigger glass surface and transparency through reducing sightline to 36 mm compared with 92 mm for 2160S

This product is made of Hydro CIRCAL® recycled aluminum. Read more here

Documentation
2160-2160S-2160S XS-EN
SAPA 2160S XS

More information

Specifications & EPD

Fitting functions

Lift sliding door 2160S XS can be performed as one fixed and one sliding door leaf, alternatively with two sliding door leaf.

For opening the handle is turned 180° downwards, whereby the door is lifted a few millimeters and can easily be slid aside. When closing the door leaf goes down again and the rubber sealing tightens all around. The door leafs run silently on nylon rollers on a stainless rail and can be parked (lowered) at any position.

Each sliding door leaf is equipped with  espagnolette with four anchor points. Handles of aluminium and cylinder locks can be mounted on the inside and outside or inside only.

Handle

Lift handle, inside

Lift handle, inside
Pull handle, outside

Lift handle  for cylinder lock, inside

Lift handle for cylinder lock,
inside and outside

Lift handle for cylinder lock, inside
Oull handle, outside

Wheels

Location in the wall

For the entire structure to meet the energy saving requirements and ensure good comfort it is necessary to install the sliding terrace door in the warm part of the wall. This means that it should be installed as deep into the wall as possible, which has a number of advantages.

It creates good conditions for appropriate fixing and a well functioning joint. The risk of condensation is reduced due to a higher surface temperature. The joint between the frame profile and the wall shall be made with two step sealing. This means that it should consist of an outer rain barrier with an underlying air channel, a mineral wool insulation layer and an inner diffusion sealing joint.

Glazing

Unprotected glazed surfaces which are so located that they can be reached by persons shall be designed so as to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.

Glass thickness 23-50 mm


The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.

Elevations And Details

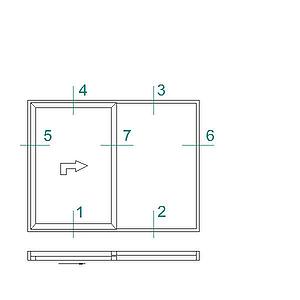

A2160-1017 1234567
Save this elevation as: dwg / dxf
Click on number to view the details
A2160-1018 1234567
Save this elevation as: dwg / dxf
Click on number to view the details
A2160-1019 1234567
Save this elevation as: dwg / dxf
Click on number to view the details

Technical information

U values for lift-sliding door

Formula for calculating the total U value of a sliding door, taking into account the glazing unit, the share of profiles and an edge zone effect linear factor.

Usliding door = ( Ag * Ug + Af * Uf + Ig * ψg )  /  ( Ag + Af )

The calculations are based on the requirements and general guidelines.

Fixing Principles

Fixing principles

Lift-sliding doors must be fixed to a stable and suitable wall structure. The choice of fixing method depends on the wall type. The number and location of fixing points depends on the size of the door.

Example:

Fixing of frame with
twist anchor inwards

Fixing of frame with
twist anchor outwards


Projects using sliding doors SAPA 2160

VillAma, Turku

Finland

Facility and place: VillAma in Turku, Finland
Construction year: 2012
Architect: SAFA Pekka Mäki, Arkitektbyrå Sigge Oy
Fabricator: Alavus Alufront Oy

Facades: Sapa 4150
Doors: Sapa 2074
Windows: Sapa 1074
Lift- and Slide doors: Sapa 2160
Surface finish: Powder coating, RAL 7021

Photography: Vesa Loikas Photography
