Glazed doors and wall elements based on uninsulated aluminium profiles with a door leaf profile depth of 60 mm. Fire rated elements shall be made using fire rated glass or infill panels approved for the building system.

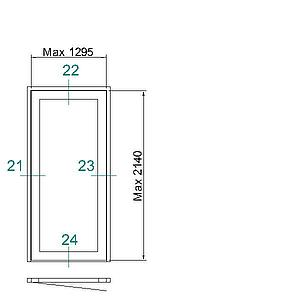

The doors can be made of door leaf profiles suitable for all types of locks with maximum door leaf dimensions of 1295 x 2140 mm. For double-leaf doors the maximum outside width of the door leafs is 2100 mm.
Thresholds are available in various versions, the doors can also be installed without a threshold with a 10 mm gap under the bottom edge. A rebate seal on the hinge side is installed also in combination with anti-finger trap.
Glazed wall elements can have a maximum length of 10000 mm and a maximum height of 3000 mm.

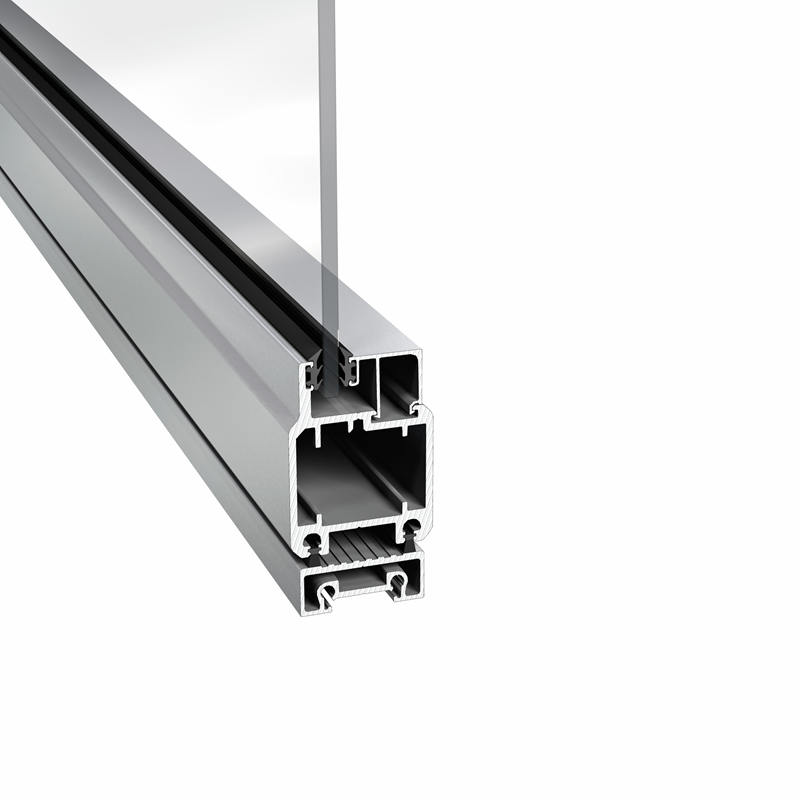

Vertical framework profile with a total width of 96 mm. For vertical extension there are special framework profiles that are made as dividing profiles. Horizontal cross-bar profiles with a profile depth of 50 mm like in Sapa 3050 glazed elements.
For more information about fire protection, fire rating, regulations and general guidelines, see Swedish construction regulations BBR, chapter 5.
Doors and entries should be designed with enough space (clear dimension) for person traffic and to allow passage in a wheel chair. Even other openings in transfer routes shall be designed so as to allow passage in a wheel chair. Applicable standards and requirements should be taken into account. In escape routes the regulations regarding the opening dimensions must be adhered to as well.

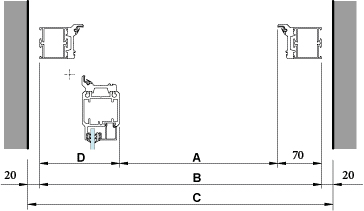

Rebate door
A = Clear dimension
B = Frame outside dimension
C = Wall opening
D with universal hinge= 128 mm
Anti-finger trap with a rubber strip
A = Clear dimension
B = Frame outside dimension
Certain parts of the door leaf or the side light can or must be filled with infill panels. It is important to consider the surface layer and the backing of the panels. The infill panels listed below meet the requirements for the applicable fire rating class.
Infill panel Stp-G 27-34 mm
Gypsum boards or equivalent with surface layer made of steel sheet or stainless steel sheet.
Max. dimensions, W x H: 600 x 2400 mm, 1100 x 1100 mm
Max. side light dimensions, W x H: 2100 x 800 mm
Infill panel Alp-G 27-34 mm
Gypsum boards or equivalent with surface layer made of aluminium sheet.
Max. dimensions, W x H: 600 x 2400 mm, 1100 x 1100 mm
Max. side light dimensions, W x H: 2100 x 800 mm
