Facades / roof glazing

SAPA 4150

SX - High insulated

Versatile curtain walling

Characteristics

The 4150 SX facade system consists of 50 mm wide insulated aluminium profiles. Our newly developed insulating thermal break together with the inside gasket, provides good insulation capacity (so-called High Insulated).

The mullions are designed so as to ensure stability under the dimensioning loads and are joined together with hidden joints. The system can be easily complemented with opening units. The U value of a facade must be calculated for the entire facade.

This product is made of Hydro CIRCAL® recycled aluminum. Read more here

Documentation
4150_4150_SX_4150_PH_EN_ProdBrochure2021.pdf
SAPA 4150 SX_PH_DataSheet_BA.pdf

Product benefits

DIVERSITY OF APPLICATIONS

  • High insulated profiles.
  • Doors Hinge type and sliding doors can be easily integrated.
  • Windows Hinge type and sliding doors can be easily integrated.

HIGH PERFORMANCE

  • Classified According to applicable EN standards.

DIVERSITY OF FORMS

  • Several types of mullion and transoms. Rectangular (profile depth 35-300 mm), I- and T-shaped profiles give a lot of freedom in interior design.
  • Wide range of decorative caps for exterior design.

More information

Specifications & EPD

Glazing

Unprotected glazed surfaces that can be reached by persons shall be designed to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.

Glass thickness 33-56 mm


The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.

U values for infill panels

The links below present tables with the middle point U value for different infill panels. The calculations are based on the requirements and general guidelines contained in the Swedish construction regulations BBR 2008, chapter 9.

Infill panel

Opening units

The window frames are specially adapted to the glass rebate of the facade system for simple installation. The windows in the 1086 SX window system are available as tilt and turn, bottom- hung, top-hung and side-hung, inward opening units.

The 2086 door system includes inward and outward opening single or double leaf doors with frame profiles that are specially adapted to the glass rebate of the facade system for simple installation.

1086 SX Windows

- Profile depth 86 mm
- Insulated aluminium profiles
- Side, bottom or top-hung
- Tilt and turn

2086 SX Doors

- Profile depth 86 mm
- Insulated aluminium profiles
- Inward or outward opening
- Single or double leaf doors

Facade additions

Opinions differ among designers on how the outside joints of a glass facade should be shaped. We have two different decorative profile systems: Add and Expressive.

Add, offers a design concept with its visible fastening elements and characteristic groove. The add cap is also able to support solar shading elements, lightning conductors, down pipes, rain gutters, signboards and lighting.

Expressive, gives the designer more freedom in the play of light and shadow on the facade. It is also possible to design one's own decorative profiles if needed.


Add, decorative profiles

Add 42693 basic decorative cap with mitred connection.

Add 42693 basic decorative cap complemented with coloured infill cap.

Add 42693 basic decorative cap with large screw mounting.

Add, support system

Add 42693 basic decorative cap with lightning conductor cable

Add basdekorprofil 42693 med åskledarkabel

Add 42693 basic decorative cape with connection for solar shading elements


Expressive, decorative profiles

Expressive 42695 flanged cap in horizontal arrangement combined with 42227cap in vertical arrangement

Expressive 68827 decorative cap in horizontal arrangement combined with 68823 wing cap in vertical arrangement

Expressive 42695 flanged cap in horizontal and vertical arrangement

Expressive 68819 T-cap in horizontal and vertical arrangement

Expressive 68827 U-cap in horizontal and vertical arrangement

Expressive 42813 pyramid cap in horizontal arrangement combined with 42811 cape in vertical arrangement


Elevations And Details

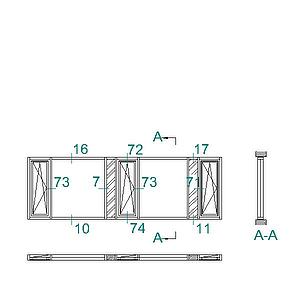

A4150-1050 1011161777172737374
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1055 110163
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1056 1101116177
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1047 10141721222331323334
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1053 1111316234
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1054 1101635051
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1042 1101112131314151622122345671727374
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1043 11011121314172345671727374
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1044 110151623456
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1041 11011121314161819221223456717273749
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1045 1101112131417181823456717273749
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1046 110161919359
Save this elevation as: dwg / dxf
Click on number to view the details
