Facades / roof glazing

SAPA 4150

SSG - Structural Sealant Glazing

Structural Sealant Glazing curtain walling

Characteristics

The 4150 SSG, Structural Glazing facade system, consists of 50 mm wide insulated aluminium mullions and transoms. The system is based on double glazing units with a warm edge and a specially developed mounting profile for installation fittings. The glass panes are anchored in the mullions and transoms with the help of installation fittings. The weather seal between the glass panes is done with the use of an approved sealing compound, usually black. The design of the inside gasket and the insulating strip optimises the insulation of the profiles.

The mullions are designed so as to ensure stability under the dimensioning loads and are joined together with hidden joints. The system also includes opening units, which can be easily integrated. The U value of a facade must be calculated for the entire facade.

This product is made of Hydro CIRCAL® recycled aluminum. Read more here

Documentation

Product benefits

DIVERSITY OF APPLICATIONS

  • Well-insulated profiles.
  • Opening window with hidden sash.
  • Doors Hinge type and sliding doors can be easily be integrated.

HIGH PERFORMANCE

  • Classified According to applicable EN standards.

DIVERSITY OF FORMS

  • Several mullions and transoms Rectangular (profile depth 35-300 mm), I- and T-shaped profiles give a lot of freedom in interior design.

More information

Specifications & EPD

Infill panels


Infill panel

Glazing

Unprotected glazed surfaces that can be reached by persons shall be designed to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.


The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.

Opening units

The facade system can be easily complemented with 4074 outward opening windows and 2086 doors.

The 4074 window system is suitable for integrating in the facade system. The outward opening windows can be provided with fittings for either horizontal or vertical projecting function.

The 2086 door system includes inward and outward opening, single or double leaf doors. Entrance sliding doors are also available.

- Profile depth 84 mm
- Insulated aluminium profiles
- Rebate for double glazing units

U values for glass facades

Formula for calculating the total U value of a facade, taking into account the glazing unit, the share of profiles and the edge zone effect the linear factor.

Ucw = ( Ag * Ug + Af * Uf + Ig * ψg )  /  ( Ag + Af )

Elevations And Details

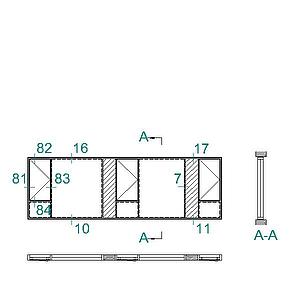

A4150-1051 10111617781828384
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1058 110163
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1048 101417212223313234
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1052 101216212223313234
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1057 110163
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1016 110121314162212223345681828384
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1049 11012121635
Save this elevation as: dwg / dxf
Click on number to view the details
