Facades / roof glazing

SAPA 4150

PH - Passive House

Passive House certified curtain walling

Characteristics

Sapa Facade 4150 PH meets the stringent Passive House energy requirements covered by the German certification institute ift Rosenheim. The system achieves low Ucw = 0,66 W/m2 K. Read more about 4150.

This product is made of Hydro CIRCAL® recycled aluminum. Read more here

Documentation
SAPA 4150 PH_DataSheet_BA.pdf
4150_4150_SX_4150_PH_EN_ProdBrochure2021.pdf
SAPA 4150 SX_PH_DataSheet_SE.pdf

More information

Specifications & EPD

Glazing

Unprotected glazed surfaces that can be reached by persons shall be designed to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.

Glass thickness 33-56 mm



The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.

Facade additions

Opinions differ among designers on how the outside joints of a glass facade should be shaped. We have two different decorative profile systems: Add and Expressive.

Add, offers a design concept with its visible fastening elements and characteristic groove. The add cap is also able to support solar shading elements, lightning conductors, down pipes, rain gutters, signboards and lighting.

Expressive, gives the designer more freedom in the play of light and shadow on the facade. It is also possible to design one's own decorative profiles if needed.

Add, decorative profiles

Add 42693 basic decorative cap with mitred connection.

Add 42693 basic decorative cap complemented with coloured infill cap.

Add 42693 basic decorative cap with large screw mounting.

Add, support system

Add 42693 basic decorative cap with lightning conductor cable

Add basdekorprofil 42693 med åskledarkabel

Add 42693 basic decorative cape with connection for solar shading elements


Expressive, decorative profiles

Expressive 42695 flanged cap in horizontal arrangement combined with 42227cap in vertical arrangement

Expressive 68827 decorative cap in horizontal arrangement combined with 68823 wing cap in vertical arrangement

Expressive 42695 flanged cap in horizontal and vertical arrangement

Expressive 68819 T-cap in horizontal and vertical arrangement

Expressive 68827 U-cap in horizontal and vertical arrangement

Expressive 42813 pyramid cap in horizontal arrangement combined with 42811 cape in vertical arrangement


Opening units

The window frames are specially adapted to the glass rebate of the facade system for simple installation. The windows in the 1086 SX window system are available as tilt and turn, bottom- hung, top-hung and side-hung, inward opening units.

The 2086 door system includes inward and outward opening single or double leaf doors with frame profiles that are specially adapted to the glass rebate of the facade system for simple installation.

1086 SX Windows

- Profile depth 86 mm
- Insulated aluminium profiles
- Side, bottom or top-hung
- Tilt and turn

2086 SX Doors

- Profile depth 86 mm
- Insulated aluminium profiles
- Inward or outward opening
- Single or double leaf doors

Elevations And Details

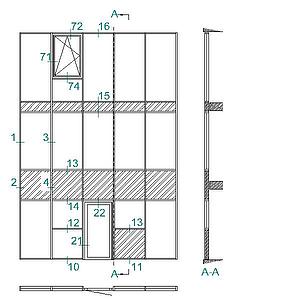

A4150-1060 110111213131415162212234717274
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1061 11011121314161822122347172749
Save this elevation as: dwg / dxf
Click on number to view the details

Projects using facades / roof glazing SAPA 4150

Lindesberg Hälsocenter

Sweden

Architect: White Architects
Metal builder: Glaslindberg Facade
Products: Facade SAPA: 4150, Roof: SAPA 5050, Doors SAPA 2086 & SAPA 2050
Photo: Åke E:son Lindman &White

Tramway, Lund

Sweden

Developer: Region Skåne / Lunds Kommun
Construction contractor: NCC Building Sweden
Metal builder: Alab Aluman AB
SAPA solutions: Facade 4150, Doorr 2086, Window 1086

Lindbackaskolan

Sweden

Contractor: Lindesberg's Bygg AB
Architect: SWECO Architects AB och PE Teknik & Arkitektur AB
Metal builder: Rockpart AB
SAPA-Products: Facade 4150 and fire door 2086

Eagle view, Parveke, Finland

Finland

Building: Hotell Iso-Sy.te
Location: Syöte, Finland
Building year: 2014
Architect: Harri Lindroos, arkitekt safa ARKTON Suunnitteluryhm. Oy
Fabricator: Alutec Oy

Facades: Sapa Facade 4150
Roof Glazing: Sapa Roof Glazing 5050

Photography: Tiina Törmänen

World Maritime University, Malmö

Sweden

Building: World Maritime University
Location: Malmö. Year of construction: 2013–2015
Architect: Terroir & Kim Utzon Arkitekter A/S
Fabricator: Preconal Fasad AB
Developer: Stadsfastigheter, City of Malmö

Facades: Sapa Facade 4150
Doors: Sapa Door 2074

Photography: Hans Bonnevier

Ny-Krohnborg School, Bergen

Norway

Building: Ny-Krohnborg School
Location: Bergen.
Year of construction: 2012
Architect: Arkitektgruppen Cubus AS in partnership with Rambøll Norge AS (ARK)
Fabricator: Bue Aluminium AS
Developer: Municipality of Bergen

Facades: Sapa Facade 4150
Doors: Sapa Door 2074
Windows: Sapa Window 1074
Sliding sections: Sapa Sliding Door 2125
Surface treatment, colour: Powder-coated, RAL 8022 Glimmer

Photography: Hundven-Clements photography
