Facades / roof glazing

SAPA 4150

Insulated

Versatile curtain walling

Characteristics

The 4150 facade system consists of 50 mm wide insulated aluminium profiles. The design of the inside gasket and the thermal break optimises the insulation of the profiles.

The profiles are available in a number of different depths. They are designed so as to ensure stability under the dimensioning loads and are joined together with hidden joints. The system can be easily complemented with opening units. The U value of a facade must be calculated for the entire facade.

This product is made of Hydro CIRCAL® recycled aluminum. Read more here

Documentation
4150_4150_SX_4150_PH_EN_ProdBrochure2021.pdf
Facade_Complements_EN_ProdBrochure2021.pdf
SAPA 4150_DataSheet_BA.pdf
Brochure Recycling SAPA
EPD SAPA 4150 facade, 3-glass, coated - EN

Product benefits

DIVERSITY OF APPLICATIONS

  • Well-insulated profiles
  • Doors Hinge type and sliding doors can be easily integrated
  • Four window systems, both inward and outward opening

HIGH PERFORMANCE

  • Fire protection Available in fire resistance class E 30, EI 15 or EI 30
  • Burglar resistance: Burglar resistance RC2/RC3 according to EN 1627.
  • Classified According to applicable EN standards

DIVERSITY OF FORMS

  • Several types of mullion and transom profiles. Rectangular (profile depth 35-300 mm), I- and T-shaped profiles give a lot of freedom in interior design
  • Wide range of decorative caps for exterior design

More information

Specifications & EPD

U values for infill panels

The links below present tables with the middle point U value for different infill panels. The calculations are based on the requirements and general guidelines contained in the Swedish construction regulations BBR 2008, chapter 9.

Infill panel

For more information please contact our Architect Support

Glazing

Unprotected glazed surfaces that can be reached by persons shall be designed to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.

Glass thickness 23-48 mm



The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.

Opening units

The window frames are specially adapted to the glass rebate of the facade system for simple installation. The windows in the 1086 window system are available as tilt and turn, bottom- hung, top-hung and side-hung, inward opening units.

The 1086 door system includes inward and outward opening single or double leaf doors with frame profiles that are specially adapted to the glass rebate of the facade system for simple installation.

1086 Windows, inward opening

- Profile depth 86 mm
- Insulated aluminium profiles
- Side, bottom or top-hung
- Tilt and turn
- Rebate for double and triple glazing units



1086 Windows, outward opening

- Profile depth 86 mm
- Insulated aluminium profiles
- Side, bottom or top-hung
- Rebate for double and triple glazing units



1086 Block Windows, inward opening

- Profile depth 86 mm
- Insulated aluminium profiles
- Tilt and turn
- Rebate for double glazing units



4074 Facade Windows, outward opening

- Profile depth 88 mm
- Insulated aluminium profiles
- Top hung projection
- Bottom hung projection
- Rebate for double glazing units



2086 SX Doors

- Profile depth 86 mm
- Insulated aluminium profiles
- Inward or outward opening
- Single or double leaf doors
- Rebate for double and triple glazing units

Facade additions

Opinions differ among designers on how the outside joints of a glass facade should be shaped. We have two different decorative profile systems: Add and Expressive

Add, offers a design concept with its visible fastening elements and characteristic groove. The add cap is also able to support solar shading elements, lightning conductors, down pipes, rain gutters, signboards and lighting.

Expressive, gives the designer more freedom in the play of light and shadow on the facade. It is also possible to design one's own decorative profiles if needed.

Add, decorative profiles

Add 42693 basic decorative cap with mitred connection.

Add 42693 basic decorative cap complemented with coloured profile.

Add 42693 basic decorative cap with large screw mounting.

Add, support system

Add 42693 basic decorative cap with down pipe

Add 42693 basic decorative cap with lightning conductor cable

Add 42693 basic decorative cap with connection for solar shading elements

Expressive, decorative profiles

Expressive 42695 flanged cap in horizontal arrangement combined with 42227 profile in vertical arrangement

Expressive 68827 decorative cap in horizontal arrangement combined with 68823 wing profile in vertical arrangement

Expressive 42695 flanged cap in horizontal and vertical arrangement

Expressive 68819 T-cap in horizontal and vertical arrangement

Expressive 68827 U-cap in horizontal and vertical arrangement

Expressive 42813 pyramid cap in horizontal arrangement combined with 42811 cap in vertical arrangement


Elevations And Details

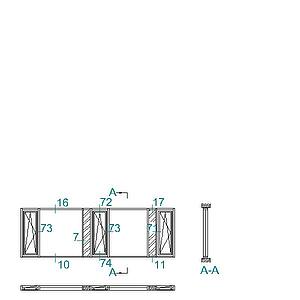

A4150-1028 1011161777172737374
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1029 110163
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1030 1101116177
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1024 10141721222331323334414243
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1025 1111316234
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1026 10168
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1027 1101635051
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1018 110111213131415162212234566162636471727374818284
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1019 1101112131417234566162636471727374818284
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1020 110151623456
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1021 1101112131416181922122345661626364717273748182849
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1022 110111213141718182345661626364717273748182849
Save this elevation as: dwg / dxf
Click on number to view the details
A4150-1023 110161919359
Save this elevation as: dwg / dxf
Click on number to view the details

Projects using facades / roof glazing SAPA 4150

Lindesberg Hälsocenter

Sweden

Architect: White Architects
Metal builder: Glaslindberg Facade
Products: Facade SAPA: 4150, Roof: SAPA 5050, Doors SAPA 2086 & SAPA 2050
Photo: Åke E:son Lindman &White

Tramway, Lund

Sweden

Developer: Region Skåne / Lunds Kommun
Construction contractor: NCC Building Sweden
Metal builder: Alab Aluman AB
SAPA solutions: Facade 4150, Doorr 2086, Window 1086

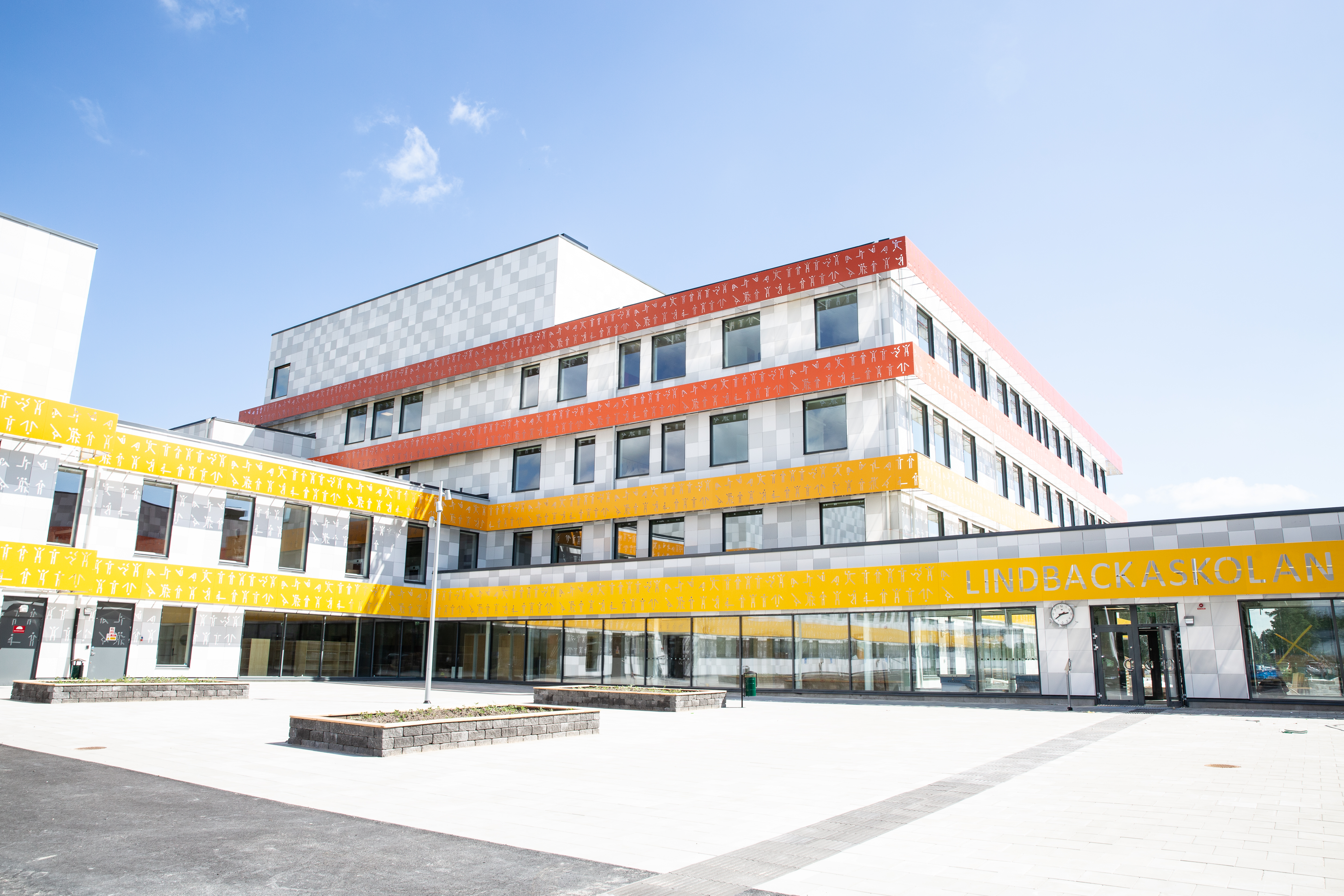

Lindbackaskolan

Sweden

Contractor: Lindesberg's Bygg AB
Architect: SWECO Architects AB och PE Teknik & Arkitektur AB
Metal builder: Rockpart AB
SAPA-Products: Facade 4150 and fire door 2086

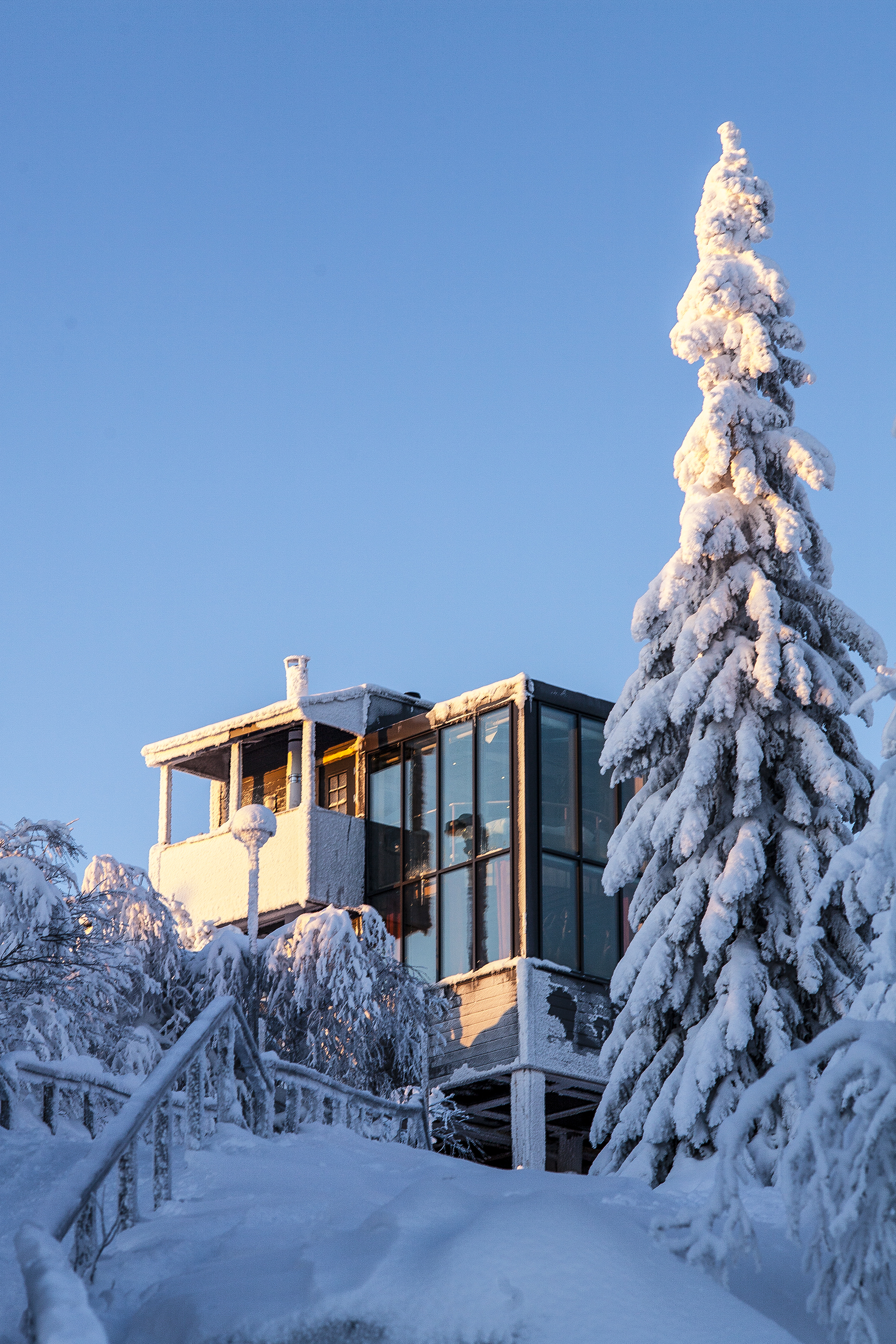

Eagle view, Parveke, Finland

Finland

Building: Hotell Iso-Sy.te
Location: Syöte, Finland
Building year: 2014
Architect: Harri Lindroos, arkitekt safa ARKTON Suunnitteluryhm. Oy
Fabricator: Alutec Oy

Facades: Sapa Facade 4150
Roof Glazing: Sapa Roof Glazing 5050

Photography: Tiina Törmänen

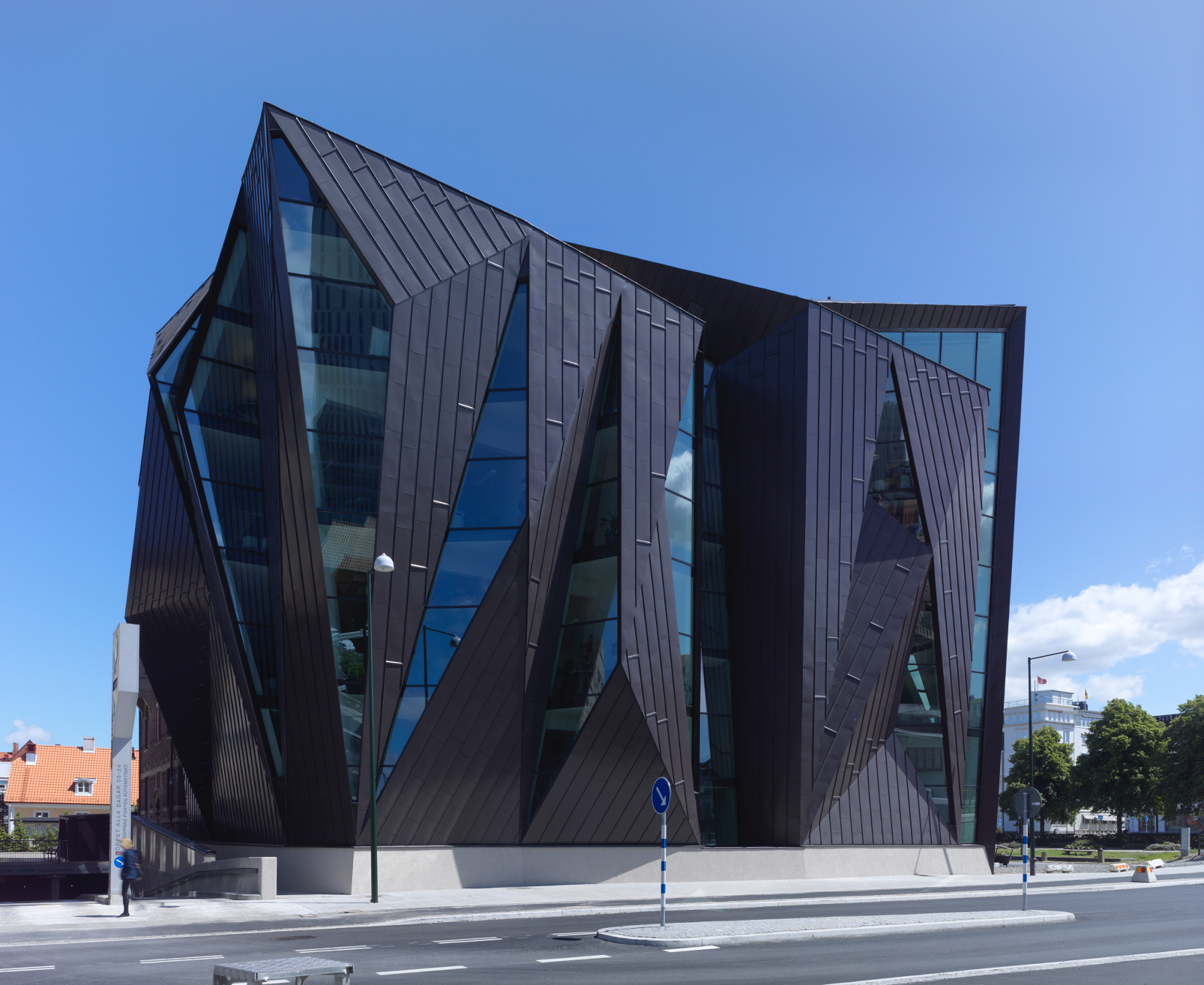

World Maritime University, Malmö

Sweden

Building: World Maritime University
Location: Malmö. Year of construction: 2013–2015
Architect: Terroir & Kim Utzon Arkitekter A/S
Fabricator: Preconal Fasad AB
Developer: Stadsfastigheter, City of Malmö

Facades: Sapa Facade 4150
Doors: Sapa Door 2074

Photography: Hans Bonnevier

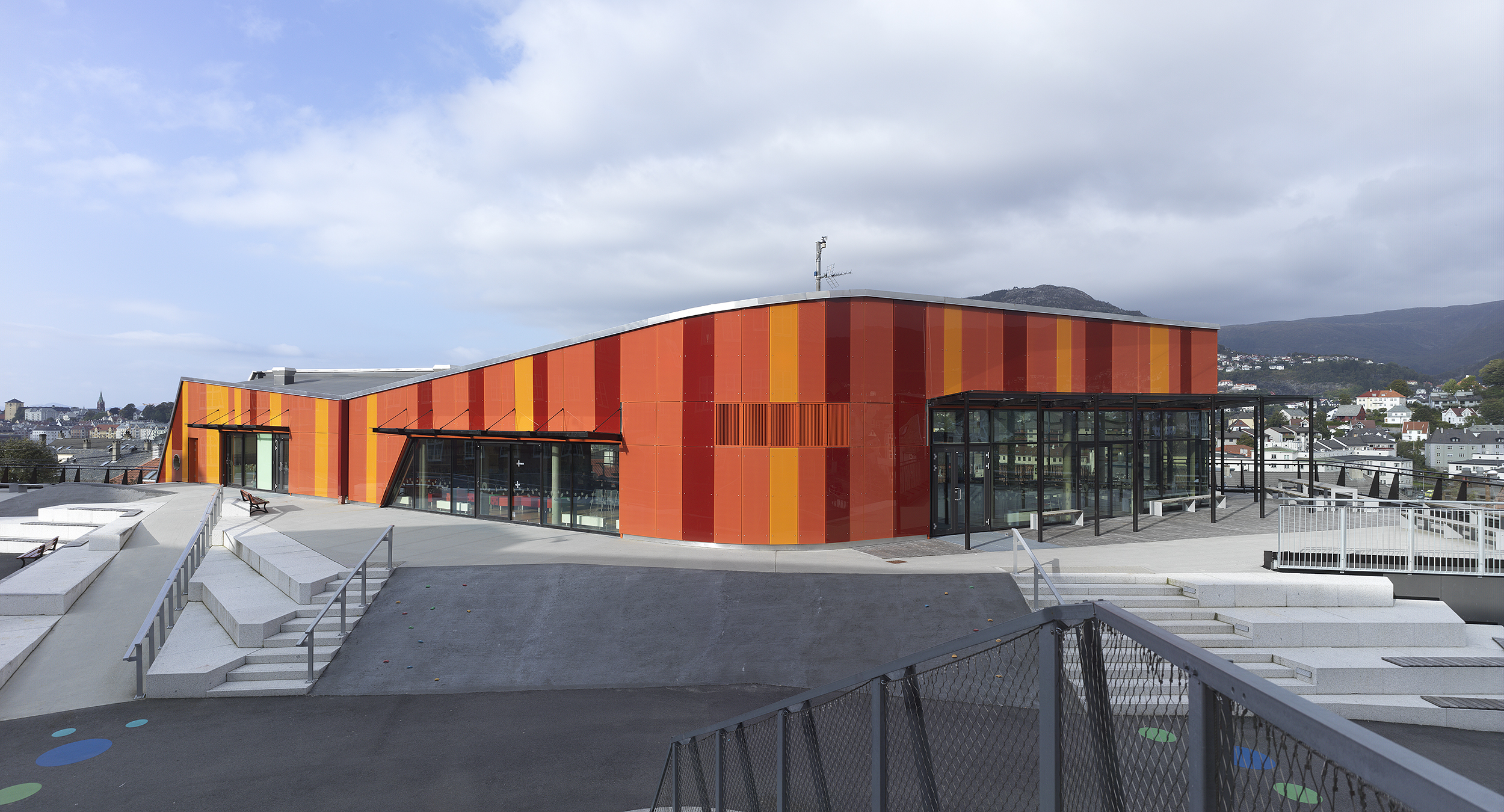

Ny-Krohnborg School, Bergen

Norway

Building: Ny-Krohnborg School
Location: Bergen.
Year of construction: 2012
Architect: Arkitektgruppen Cubus AS in partnership with Rambøll Norge AS (ARK)
Fabricator: Bue Aluminium AS
Developer: Municipality of Bergen

Facades: Sapa Facade 4150
Doors: Sapa Door 2074
Windows: Sapa Window 1074
Sliding sections: Sapa Sliding Door 2125
Surface treatment, colour: Powder-coated, RAL 8022 Glimmer

Photography: Hundven-Clements photography
