Our automatic 2086 sliding doors are insulated and based on a stable solution. The profiles has a profile depth of 86 mm and uses 30 mm wide glass fibre reinforced polyamide strips. The fixed parts can be made of the system 3086 (the most common choice) or the façade systems 4150, 4150 SX, 4150 SSG och 5050 SG. In 3086 system the top frame element can be made of different profiles adapted for various automatic devices available on the market.
This product is made of Hydro CIRCAL® recycled aluminum. Read more here
When calculating the clear dimension we have taken into account the risk for squeeze injuries at the door leaf back edge.

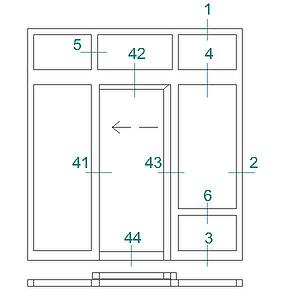

Single-wing door
F.O = Clear dimension
K.Y.M = Frame outside dimension
Max. clear dimension = (Frame outside dimension - 350) / 2
Min. frame outside dimension = 2 x Clear dimension + 350
Double-wing door
F.O = Clear dimension
K.Y.M = Frame outside dimension
Max. clear dimension = (Frame outside dimension - 565) / 2
Min. frame outside dimension = 2 x Clear dimension + 565
Unprotected glazed surfaces that can be reached by persons shall be designed so as to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.
Functional dimensions
Glass thickness 20-54 mm
The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.
Glazing
Glass thickness 20-54 mm
Double glazing unit
Triple glazing unit
Certain parts of the elements can or must be filled with infill panels. It is important to consider the backing and the surface layer of the panels. If the infill panels are exposed to heavy impacts or mechanical loads, the backing should be made of durable board and the surface layer should be made of stainless or glass enamelled steel sheet.
Infill panel F2
U value in the middle: 0.74 W/m2K
1,5 mm Aluminium sheet
4,8 mm Board
40 mm Insulation
4,8 mm Board
1,5 mm Aluminium sheet
Infill panel F3
U value in the middle: 0.74 W/m2K
1.5 mm Aluminium sheet
10 mm Chipboard
40 mm Insulation
1.5 mm Aluminium sheet
Infill panel F4
U value in the middle: 0.74 W/m2K
1.5 mm Aluminium sheet
40 mm Insulation
10 mm Sapa boarding
These can be adapted to the required functions and the customer's special needs. For more information refer to the product descriptions provided by the suppliers of automatic systems.
For a folding door to function in a satisfactory manner it is important that the fixing elements and the base structure along the top edge and the side are stable. The rail profile used for hanging up the door leaf fittings must be well anchored so that the clearance between the door leafs and the floor is sufficient.
Door elements must be fixed to a stable and suitable wall structure. The choice of fixing method depends on the wall type. The number and location of fixing points depends on the size of the element.
Frame attachment with
adjustable frame bushing
Frame attachment with
screw
Frame attachment with
twist anchor
Frame attachment with
bolt and welded plate
