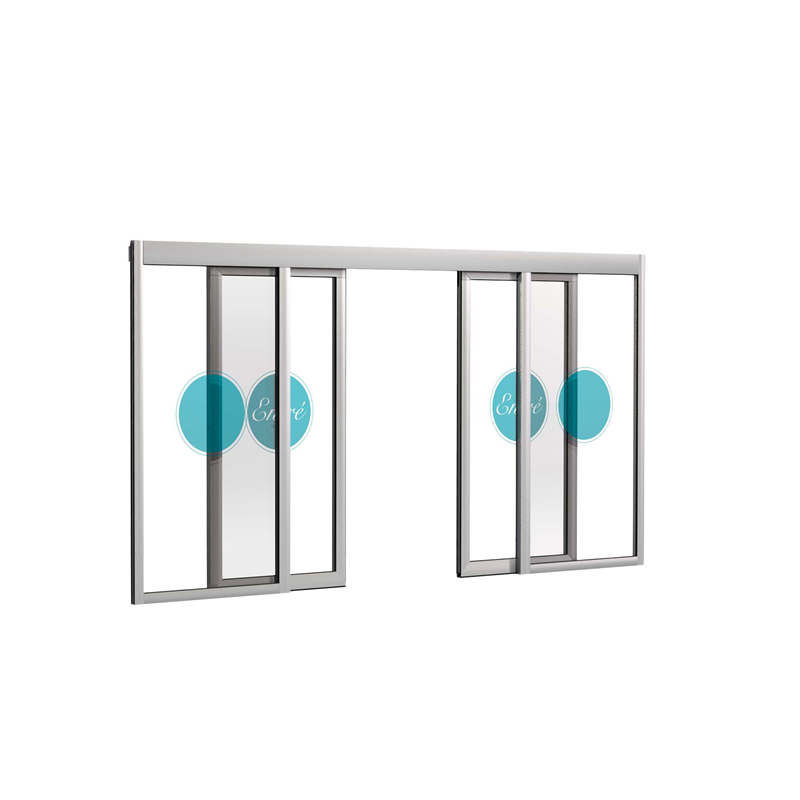

Our automatic 2050 sliding doors are based on a stable solution with a possibility of several different add-on functions. The system is based on uninsulated aluminium profiles with a profile depth of 50 mm. The fixed parts can be made of the 3050 or the 3086 system profiles. The top frame element can be made of different profiles adapted for various automatic devices available on the market.
This product is made of Hydro REDUXA® - Aluminum produced from renewable energy. Read more here
When calculating the clear dimension we have taken into account the risk for squeeze injuries at the door leaf back edge.

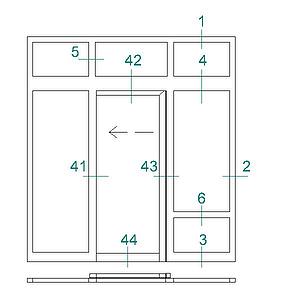

Single-wing door
F.O = Clear dimension
K.Y.M = Frame outside dimension
Max. clear dimension = (Frame outside dimension - 354) / 2
Min. frame outside dimension = 2 x Clear dimension + 354
Double-wing door
F.O = Clear dimension
K.Y.M = Frame outside dimension
Max. clear dimension = (Frame outside dimension - 574) / 2
Min. frame outside dimension = 2 x Clear dimension + 574
Single-wing telescopic sliding door
F.O = Clear dimension
K.Y.M = Frame outside dimension
Clear dimension = (K.Y.M - 468) x 2/3
Min. frame outside dimension = 1,5 x F.O + 468
Single-wing telescopic sliding door
F.O = Clear dimension
K.Y.M = Frame outside dimension
Max. clear dimension = (K.Y.M. -802) x 2/3
Min. frame outside dimension = 1,5 x F.O +802
These can be adapted to the required functions and the customer's special needs. For more information refer to the product descriptions provided by the suppliers of automatic systems.
Unprotected glazed surfaces which are so located that they can be reached by persons shall be designed so as to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.
Functional dimensions
Glass thickness 5-33 mm
The illustration shows the different functional dimensions commonly used by the window industry and established by the MTK. The gaskets are made of EPDM rubber and are available in several versions.
Glazing
Glass thickness 5-33 mm
Certain parts of the elements can or must be filled with infill panels. It is important to consider the backing and the surface layer of the panels. If the infill panels are exposed to heavy impacts or mechanical loads, the backing should be made of durable board and the surface layer should be made of stainless or glass enamelled steel sheet.
Infill panel F2
1.5 mm Aluminium sheet
3.2 mm Board
25 mm Insulation
3.2 mm Board
1.5 mm Aluminium sheet
Infill panel F3
1.5 mm Aluminium sheet
12 mm Chipboard
20 mm Insulation
1.5 mm Aluminium sheet
Infill panel F4
1.5 mm Aluminium sheet
20 mm Insulation
10 mm Sapa boarding
Sliding door without threshold
Sliding door with embedded threshold
Door elements must be fixed to a stable and suitable wall structure. The choice of fixing method depends on the wall type. The number and location of fixing points depends on the size of the element.
Examples:
Frame attachment with
twist anchor
Frame attachment with
adjustable frame bushing
Frame attachment with
bolt and welded plate
Frame attachment with
screw
