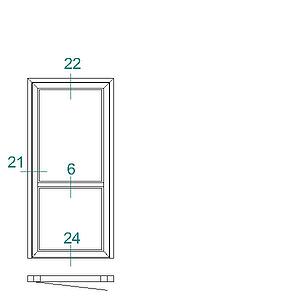

This door system is based on uninsulated aluminium profiles with a profile depth of 50 mm. Symmetrically installed glazing unit with three alternative glazing beads: L-shaped, façade type and rectangular.
The frame profile has a fixed rebate profile. Door leaf profiles for narrow section lock. The doors can be easily combined with our glazed wall and partition system 3050.

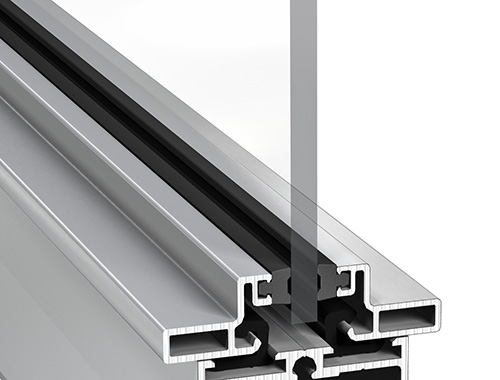

L-shaped glazing bead

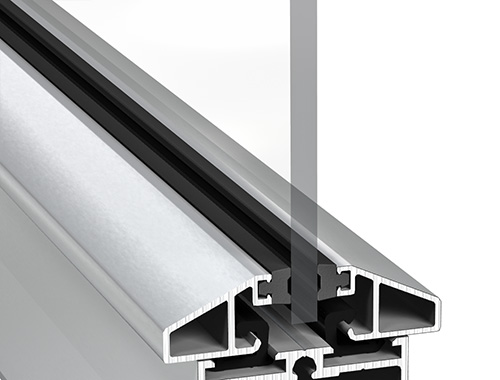

Façade type glazing bead

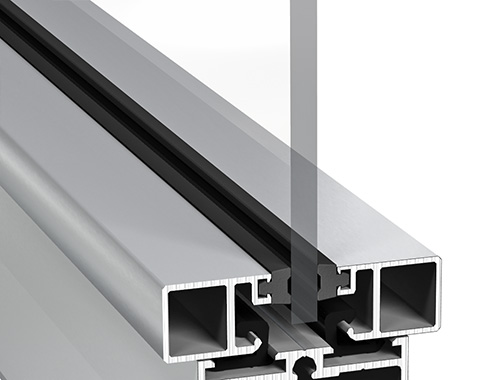

Rectangular glazing bead
Doors and entries should be designed with enough space (clear dimension) for person traffic and to facilitate passage in a wheel chair. Applicable standards and requirements should be taken into account.
Rebate door

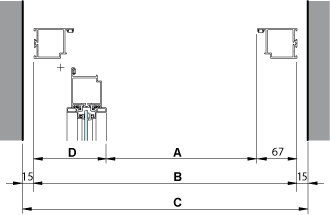

A = Clear dimension
B = Frame outside dimension
C = Wall opening
D with universal hinge= 123 mm
D with lap butt hinge= 117 mm
Anti-finger trap edge with a rubber strip
A = Clear dimension
B = Frame outside dimension
Unprotected glazed surfaces that can be reached by persons shall be designed so as to limit the risk of injury. Such glazed surfaces shall be dimensioned so as to withstand the dynamic influence of a person. Applicable standards and requirements should be taken into account.
Glass thickness 5-10 mm
Door openings should be designed without level differences from inside to outside. Sometimes a threshold is not required because of, for example, moisture or non prevailing weather conditions. When a threshold is installed, it should be as low as possible to facilitate passage. Applicable standards and requirements should be taken into account.
Door without threshold
Door with embedded threshold
Door with rebate seal against threshold
Door with strip seal
Our door system can be easily equipped with the most common fittings available on the market. For optimum functionality it is important that the fittings work together.
Our standard fittings are shown below.
Hinges, examples
Universal hinge
Lap butt hinge
Pull handles
D pull handle
with hidden mounting harmonises with the door leaf.
Height 300 mm, Ø 30 mm.
Art. no.: Sapa 14 128
Triangular pull handle
with hidden mounting harmonises with the door leaf.
Height 300 mm, Ø 30 mm.
Art. no.: Sapa 14 129
Semi-circular pull handle
with hidden mounting harmonises with the door leaf.
Height 300 mm, Ø 30 mm.
Art. no.: Sapa 14 130
Door closing devices
Door closure with arm.
According to supplier.
Sliding rail door closure.
According to supplier.
Built-in door closure.
According to supplier.
Automatic door closure.
According to supplier.
In order to reduce the risk of injury due to squeezing, we have developed a solution based on a socalled anti-finger trap edge. Applicable standards and requirements should be taken into account.
Door system 2050 with anti-finger trap edge with EPDM rubber strips.
Door elements must be fixed to a stable and suitable wall structure. The choice of fixing method depends on the wall type. The number and location of fixing points depends on the size of the element.
Examples:
Frame attachment with
twist anchor
Frame attachment with
adjustable frame bushing
Frame attachment with
bolt and welded plate
Frame attachment with
screw
